New 2022 Forest River RV Cardinal Luxury 380RLX

Fifth Wheel

Stock #CD22-004

Monticello, MN

1 of 6

Specifications

Sleeps	4	Slides	3
Length	42 ft 2 in	Ext Height	13 ft 3 in
Interior Color	03/28/2022	Hitch Weight	2555 lbs
GVWR	15500 lbs	Dry Weight	12294 lbs
Cargo Capacity	3206 lbs	Fresh Water Capacity	60 gals
Grey Water Capacity	84 gals	Black Water Capacity	46 gals
Tire Size	16"	Furnace BTU	35000 btu
Available Beds	King	Refrigerator Size	17 cu ft
Convection Cooking	Yes	Cooktop Burners	4
Shower Size	48" x 30"	Number of Awnings	2
Axle Weight	7000 lbs	LP Tank Capacity	30 lbs
Water Heater Type	Girard Tankless	AC BTU	27000 btu
TV Info	LR 50" LED TV, BR 32" LED TV, Ext. 32" TV	Awning Info	11' and 17' Power with LED Lights
Axle Count	2	Washer/Dryer Available	Yes
Number of LP Tanks	2	Shower Type	Standard
VIN	CAG105571

Features

Standard Features (2022)

Construction

LCI Next Generation Frame Technology, “Z” frame design & powder coated
“Z” frame design using 12” I-beam with 10” I-beam drop
One piece molded rear cap with two layers batten insulation & radiant foil
Sidewalls: 2” Vacuum Bonded, aluminum framed with high density block foam insulation (Extended Seasons PKG)
Roof: 5” Arched roof rafters 14” on center with two layers of batten insulation and radiant foil (Extended Seasons PKG)
Dual roof vents for breathable attic (Extended Seasons PKG)
Dicor PVC roof membrane with 20-year warranty
Main Floors: 5/8” tongue & groove plywood floors with batten insulation and radiant foil (Extended Seasons PKG)
Bath/Bedroom Floors: Welded aluminum frame with 5/8” tongue & groove plywood floors
Slide Box: 2” Laminated aluminum framed sidewalls & roof with 1” wood flooring
2” Laminated aluminum framed front wall anchors sidewalls for added strength
EGS backing strips to anchor interior cabinets
Seamless roto-cast holding tanks
Underbelly Armor provides rigid road debris protection and comes in 4’ sections for easy accessibility to underbelly
12V tank heat pads with underbelly forced air heat and radiant foil insulation (Extended Seasons PKG)
One piece molded front cap with batten insulation and radiant foil
Hydraulic slide system with 2.5” steel rams
Hydraulic pump station with manual overrides and slide selector switches
Electric above floor slides

Easy Set-Up Features

Firefly Command Center (Luxury Package)
Main 12V power awning with L.E.D. light strip
Second 12V power awning with L.E.D. light strip (N/A 344SKX)
Heated exterior water and convenience center: (Outside shower w/ quick connect hose, Full coach water filtration, black tank flush, easy winterization kit, water heater bypass, power tank fill, Cable and Sat. Co-axle hookups & enclosed low point drains)
Battery disconnect located in main storage compartment
External LP quick connect
Electric Power Cord Reel (Cardinal Luxury PKG)
Girard Tankless Water Heater (Extended Seasons PKG)
Hydraulic Selector Valves for Slide-outs
Hitch Light

Exterior Features

Premium High Gloss Gel Coat Fiberglass exterior
Front Cap: Painted high gloss gel coat fiberglass with amber L.E.D. running lights
One Piece Molded Fiberglass Rear Cap (Cardinal Luxury PKG)
Frameless Automotive Windows
Rear Roof ladder
XL folding entry assist handle
Outside Entertainment with built in 32” TV and Sound bar
Roof mounted solar prep (Essentials Camping PKG)
Enormous drop-frame pass-through storage compartment with forced air heat & L.E.D. strip lighting
Slam Latch compartment doors
Mor/Ryde Strut Assist entry step (Essentials Camping PKG)
Extra large 32” X 76” entry door with friction hinge
L.E.D. light package: Entry step, Goose neck, Front cap & Entry door
Two vented battery prep boxes
Waste Hose storage compartment
Winegard 360+ (AM/FM, TV Antenna w/ 4G & Wi-Fi extender prep) (Essentials Camping PKG)
1.5” Aluminum belt rail with caps (no exposed screws)
Dual 30 Ib. propane bottles with auto switch over
2" Accessory Receiver (Luxury Package)
Generator prep (Luxury Package)

Towing Features

Extended Turn front cap with hitch vision L.E.D. light strip
21K Rota- Flex pin box (Cardinal Luxury PKG)
Prepped for rear and side cameras (Essentials Camping PKG)
G – Range tires
7000 Ib. easy lube Dexter axles with Never-Adjust-Brakes (Essentials Camping PKG)
Road Armor Suspension w/ Wet Bolts and Shackles (Cardinal Luxury PKG)
Undermount spare tire & carrier
L.E.D. tail lights with back-up lights
16” 8-lug aluminum wheels

Living Area Features

Thomas Payne Collection theatre seats with power recline & massage (Essentials Camping PKG)
Thomas Payne Collection tri fold hide-a-bed sofa
Decorative Hardwood slide room fascia
Linoleum throughout unit- NO CARPET
13.5K BTU main A/C & 13.5K BTU Bedroom for 28.5K BTU output w/ Energy Management (Extended Seasons PKG)
35K BTU furnace
70 Amp converter with Charge Wizard
Electric Fireplace (Extended Seasons PKG)
Black metal exit assist handle
50” L.E.D. TV with sound bar
50” L.E.D. pop-up TV (370FLX)
End Tables with 110v outlets & 2.0 USB ports
Carbon monoxide detector
LP leak detector
Ceiling Fan
Central Vacuum System (Cardinal Luxury PKG)
3” Crown Molding with L.E.D. back lite
Base boards for residential feel
Decorative Light box over theatre seating
Designer Window Valances with decorative wood trim and center medallion
Day/ Night roller shades

Kitchen Features

17 Cu. Ft. Refrigerator
Residential Range
Solid surface counter tops (Essentials Camping PKG)
Residential contemporary cabinet hardware and accents
Farmhouse 60/40 stainless-steel sink (Cardinal Luxury PKG)
High rise, pull out, bullet kitchen faucet
Residential size pantry with three pull out drawers
Hidden hinges
Power vent fan
30” over-the-range Samsung convection microwave vented to exterior (Cardinal Luxury PKG)
Seeded decorative glass cabinet doors
Buffet Dinette w/ 32” exterior TV & Sound bar built in (Cardinal Luxury PKG)
Decorative Lighting above island
Full extension drawer guides
Satin Nickel plumbing fixtures

Bedroom Features

Renovo Sleep Systems mattress
True walk in closet design
Prepped for stackable washer & dryer with separate 20 AMP circuits for each appliance
Under bed storage
Two 110v bed side power outlets and 2.0 USB ports
72x80 King Beds
Decorative L.E.D. lit headboard
Two reading lights with individual controls
32” L.E.D. TV with Wood Framed decorative box
Cadet wall mounted heater w/circulation fan (Luxury Extended Season Camping Package)

Bathroom Features

48” x 30” one-piece molded fiberglass shower
3 sliding glass shower door
Shower skylight
Heat & A/C duct
Porcelain toilet with foot flush
Power roof vent
Towel bar

Options

3rd A/C 13.5K BTU Whisper Quiet in Living Area
Suburban Gas Griddle w/ mounting bracket
18 cu. Ft. Norcold 4 door gas/electric refrigerator
Slide out awnings (3,4)
Winegard Wi-fi / 4G router
Dual Pane Windows / Safety Glass
3 Full Body Paint Options: Scarlet Rose, Smoky Mamba, Ming Blue

Cardinal Luxury Package

Buffet Dinette w/ 32" Exterior TV
Frameless Automotive Windows
One Piece Molded Rear Cap (N/A 370FLX)
Rota-Flex Pin Box
Hydraulic 6-Point Auto Level
Firefly Command Center
Power Cord Reel
Hardwood, Raised Panel Cabinet Doors & Fascia
30" Convection Microwave
2" Accessory Receiver
Farmhouse 60/40 Kitchen Sink
Generator Prep

Luxury Extended Seasons Camping Package

12V Heat Pads w/ Underbelly Ducted Heat
35K BTU Furnace
27K BTU A/C Output w/ Energy Management
Girard Tankless Water Heater
Exterior Ventilated Attic for Breathable Roof
Cadet Wall Mounter Heater with Circulation Fan
Electric Fireplace in Living Room
Full Pass Thru Front Storage w/ Forced Air Heat
Sidewalls: 2" High Density Block Foam Insulation (R-9)
Roof: Fiberglass and Foil Insulation (ERr38)
Floor: Fiberglass and Foil Insulation (ER38)

Luxury Essentials Package

Vacuum Bonded, Welded Aluminum Structure
5/8" Tongue and Groove Plywood Floor
Solid Surface Kitchen Countertops
Stackable Washer/Dryer Prep
Winegard 360+ (AM/FM, TV Antenna w/ 4G & WiFi Extender Prep)
Morryde Strut Assist Entry Step
7K Dexter Axles w/ Never Adjust Brakes and G-Rated Tires
Rear Camera Prep
Roof Mounted Flex Solar Panel w/ One 12V Battery
Dual Awnings w/ LED Light Strip (Most Models)
Powered Theater Seat w/ Massage Feature
32" Friction Hinged Entry Door
72 X 80 Beds w/ Outlet Both Sides

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Great experience at Open Road RV with Jim!
We had a water leak in our new 2021 Thor Chateau motor coach and it had sat at a previous repair place for over a month. It was taken to Open Road RV Smokey Point and they diagnosed and addressed the issue immediately and had it fixed in three days. The communication with Jim was excellent. If we have

Kathrin
Great customer service!
I was so nervous being a first time owner of a 5th wheel owner and all that comes with operating it.
Until we met John for our inspection!

John spent several hours with us going over each and every section of the RV inside and out very methodically. Down to the smallest detail. He had infinite patience

Lucinda
I highly recommend!
John was outstanding and very helpful bought a new RV from open road and the process was an easy one, there was a mix up on the options. The sales manager made it right and I went on to service for the rest of the process. The service manager by far is the biggest selling point for this place if you

Patrick

We are here to help, call us at
763-260-8503 or Contact Us

We are here to help!

763-260-8503
Contact Us
Get Lowest Price

Open Road RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @360-200-5716 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2022 Forest River RV Cardinal Luxury 380RLX

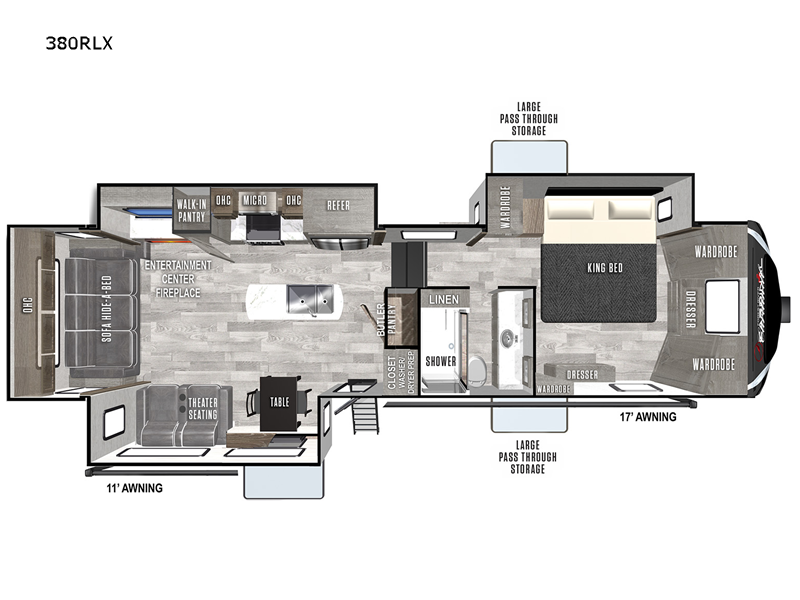

380RLX Floorplan
