Get Lowest Price

New 2023 Thor Motor Coach Pasadena 38BX

Motor Home Super C - Diesel

Stock #PA23-003

Monticello, MN

1 of 6

Specifications

Sleeps	7	Slides	2
Length	39 ft 10 in	Ext Width	8 ft 5 in
Ext Height	13 ft 3 in	Int Height	7 ft
Interior Color	LONG BEACH	Hitch Weight	15000 lbs
GVWR	32700 lbs	Fresh Water Capacity	100 gals
Grey Water Capacity	41 gals	Black Water Capacity	40 gals
Tire Size	22.5"	Furnace BTU	35000 btu
Fuel Type	Diesel	Engine	Cummins B6.7L
Chassis	Freightliner S2RV	Horsepower	360 hp
Fuel Capacity	100 gals	Wheelbase	279 in
Number Of Bunks	3	Available Beds	RV King
Torque	800 ft-lb	Refrigerator Type	Residential
Convection Cooking	Yes	Cooktop Burners	2
Shower Size	30" x 42"	Number of Awnings	1
LP Tank Capacity	105 lbs	Water Heater Type	Tankless
AC BTU	30000 btu	Basement Storage	178 cu. ft.
TV Info	LR 39", BR 32", Ext. 39"	Awning Info	17' Patio Power w/Integrated LED Lighting
Washer/Dryer Available	Yes	Shower Type	Standard
Electrical Service	50 amp	VIN	4UZADVFC7PCUK9647

Description

Thor Motor Coach Pasadena Super C diesel motorhome 38BX highlights:

Bunk Beds
Full Kitchen Slide
Cab-Over Bunk
Tilt-A-View King Bed
Exterior 39" TV
Pass-Through Storage

Get ready for a trip of a lifetime each and every time you hit the road in this Super C diesel coach! With the power and smoothness of the ride, the driver might not want to stop very often when they get to experience air suspension cockpit seating for the driver and passenger seats and an automotive dashboard with everything at arm's reach. Once you decide which RV park to setup at, the large kitchen slide and the bedroom slide provide more interior floor space to enjoy. The cook will have a residential refrigerator, a two-burner gas range top with single induction cooktop, a convection microwave, a pantry and a kitchen waste basket is provided. The kids or your guests will love sleeping on the bunk beds and the cab-over bunk, plus the furniture doubles as sleeping space. You will be able to relax and unwind while sleeping on a 72" x 80" Tilt-A-View inclining king bed in privacy of the rear bedroom, and you might like to choose a few options such as a stackable washer/dryer, painted cabinetry in place of the satin finish cabinetry, and a leather sofa bed.

With any Pasadena Super C diesel motorhome by Thor Motor Coach, the rotocast lined basement bays are lightweight, durable and easy to clean, plus allow gear to be placed in the middle 13-inch pass-through area while still having storage for smaller items below. Other capabilities include the automotive dash with Android Auto and/or Apple CarPlay on a large 10-inch screen when you plug in your phone, a free trail of Sirius XM radio, and the three camera system, plus a significant gross combined vehicle rating of the chassis allows plenty of pulling capacity even when fully loaded. There is even solar onboard and Firefly provides the Rapid Camp+ multiplex system giving you all coach controls. The custom chassis might be the reason you looked at this coach, yet all the other features might be why you decide to go big and choose a Pasadena such as the residential luxury vinyl tile flooring, the leatherette home theater seating with footrests, the solid surface countertops and decorative tile backsplash in the kitchen, and the list continues!

Features

Standard Features (2023)

Construction

S2RV Freightliner Chassis
Cummins ISB-XT 6.7L Engine with 360HP & 800 lb.-ft. Torque
15,000-lb. Trailer Hitch with 7-pin Round Connector
Automatic Leveling Jacks with Touchpad Controls
Welded Tubular Steel Floor
Welded Tubular Aluminum Roof and Sidewall Cage Construction
Vacu-Bond Laminated Roof, Walls and Floor with Block Foam Insulation
Full-Body Paint with Gel Coated Sidewalls
Invisible Front Paint Protection
Rotocast Storage Compartments
Side-Hinged Aluminum Compartment Doors
Basement Pass-through Storage Compartment
Premium One-piece Roof
Fiberglass Front Cap with Windshield
One-Piece Fiberglass Rear Cap
Powered Sky View Shade in Cab Overhead
Automatic Courtesy Lights Over Cab Entry
Power Patio Awning with Integrated LED Lighting
Power Entry Door Awning (Model Specific)
Slide-out Room Topper Awning(s) (
Roof Ladder
Electric Entry Steps
Entry Door with Dead Bolt Lock
Frameless Dual Pane Windows
Roof Vent Covers
Patio Light (model specific)
Exterior Grab Handle
Pet-Link™ Multi-Purpose Tie-Down

Automotive & Cockpit

10.1 in. Touchscreen Dash Radio with Bluetooth®, Apple CarPlay®/Android Auto® and Sirius/XM® Prep
Heated/Remote Exterior Mirrors
Side View Camera System
Power Windows and Door Locks
Cruise Control
Tilt and Telescoping Steering Wheel
Map Light
Sun Visors
Privacy Curtain
Cab Light
Drink Holders
Three-Point Seat Belts for Driver and Passenger
Air Ride Adjustable Driver and Passenger Seat with Seat Covers (model specific)
Driver and Passenger Captain's Chairs with Center Arms, Headrests and Walk-through to Coach
22.5 in. Tires with Aluminum Wheels
Fiberglass Running Boards
All Weather Cab Floor Mat
Emergency Engine Start Switch
Cabover Sleeping

Interior

84 in. Interior Ceiling Height
Residential Luxury Vinyl Tile Flooring
Metal Entry Grab Handle
Rubber Tread Entry Steps with Lighted Step Well
Smoke, LPG and Carbon Monoxide Detectors
Fire Extinguisher
Ceiling Ducted Air Conditioning System
Hardwood Veneer Paneling in Select Areas
Painted Cabinetry with Solid Wood Flat Panel Cabinet Doors and Nickel Finish Hardware (model specific)
Satin Finish Cabinetry with Solid Wood Flat Panel Cabinet Doors and Nickel Finish Hardware (model specific)
Full Extension Metal Ball-Bearing Drawer Guides
LED Lighting
Soft Vinyl Ceiling
Leatherette Sofa Bed (model specific)
Second Leatherette Sofa Bed (model specific)
Leatherette Home Theater Seating with Footrests
Dream Dinette® Booth with Cup Holders
Press Laminated Countertops (Select Locations)
Sofa Pillows
Passenger Seat Belts in Select Areas
Single Child Safety Seat Tether Anchor in Booth Dinette
Lambrequin Window Treatments
Window Privacy Roller Shades
Electric Fireplace with Remote Control (Model Specific)

Kitchen

Residential Refrigerator
2-Burner High-output Gas Range Top with Single Induction Cooktop
30 in. Stainless Steel Over-the-Range Convection Microwave Oven
Solid Surface Countertops
Solid Surface Sink Covers
Decorative Tile Backsplash
Stainless Steel Double Bowl Sink and Single Handle Faucet with Pull-Down Sprayer
Pantry
Kitchen Waste Basket
12V High Capacity, Power Vent with Cover

Bedroom & Bathroom

King Size Bed with Tilt-A-View® Inclining Bed Mechanism
Bedroom 110V Outlet on Inverter for CPAP Machine
Designer Headboard, Bedspread and Pillow Shams
Bunk Beds – Convert to Closet (Model Specific)
Foot Flush Porcelain Toilet
Power Vent in Bathroom(s) with Cover
Skylight in Shower
Fiberglass Shower(s) with Obscure Glass Door
SHOWERMI$ER Hot Water Recycling System
Oxygenics® Shower Head

Entertainment

50 in. LED TV in Living Area (Model Specific)
Retractable 50" LED TV in Living Area (Model Specific)
40 in. LED TV in Living Area (Model Specific)
32 in. LED TV in Bedroom
Exterior 40 in. TV on Swivel Bracket with Bluetooth® Built-in Soundbar and Radio (Model Specific)
Tablet Holders with Charge Ports and USB Charge Ports in Bunk Beds (Model Specific)
Blu-Ray Player in Living Area (Model Specific)
Table Holders with Charge Ports and USB Ports in Bunk Beds (Model Specific)
Soundbar in Living Area (Model Specific)
HDMI Video Distribution (Model Specific)
Cable TV Ready
Digital TV Antenna
USB Charging Ports - Bedroom and Living Room
Satellite Mounting Backer in Roof
Winegard® ConnecT™ WiFi Extender +4G

Electrical & Plumbing

Onan® RV QD 8000 Diesel Generator
50-amp Shoreline Power Cord
Dual Roof Air Conditioners with Heat Pumps
Battery Disconnect Switch
(4) Auxiliary House Batteries
100-watt Solar Charging System with Control through Main Multiplex Control Panel
Exterior LP Connection
Tankless Water Heater
Water Heater Bypass System
Enclosed and Heated Holding Tanks
Whole Coach Water Filtration System
Black Tank Flush System
55-amp Converter
1800-watt Inverter
Automatic Generator Start
Stackable Washer/Dryer Prep (Model Specific)
Rapid Camp+® Multiplex Wiring Control System, WiFi-App Enabled and 7 in. Touchscreen
Outside Shower
360 Siphon® RV Holding Tank Vent Cap

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Amazing experience at Open Road RV!
My fiancé and I had such an amazing experience with Open Road Rv- Smokey Point! Thank you so much Jaquelyn and Joe for working non stop to have our fifth wheel ready for our future adventures. They went above and beyond in answering our questions, talking to us on the phone consistently giving us updates,

Savanah
Overall a great experience!
From the get-go, John made us feel very comfortable about us asking any questions and taking the time to walk us through anything we wanted him to. The walk through was comprehensive and we left feeling a lot more comfortable understanding our coach. He also has personal experience RV’ing which led

Aaron
Open Road RV was great!
From sales to service prepping our new rv, Open Road RV was great. Jax out in service stayed in constant communication and got our trailer out on time (thanks)

Tom

We are here to help, call us at
763-260-8503 or Contact Us

We are here to help!

763-260-8503
Contact Us
Get Lowest Price

Open Road RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @360-200-5716 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Thor Motor Coach Pasadena 38BX

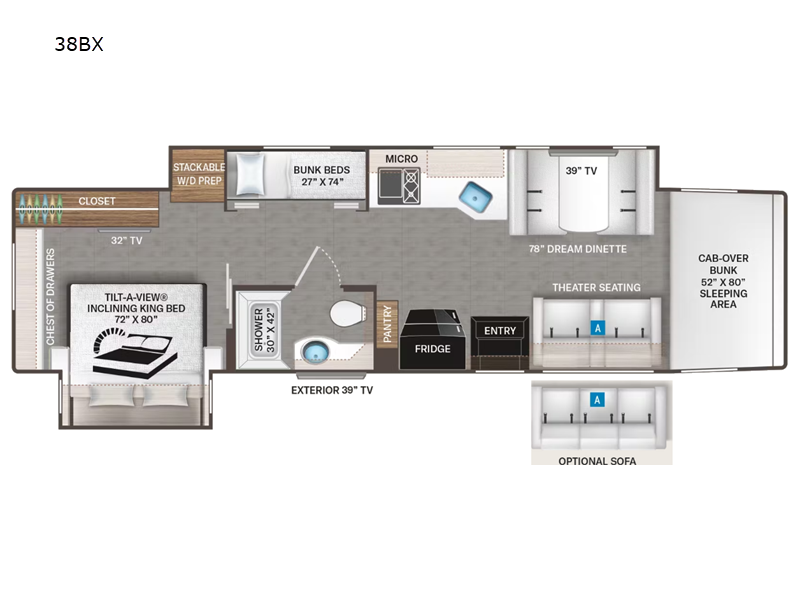

38BX Floorplan
